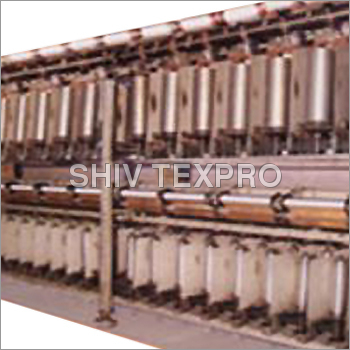

Double Thread Machine

Double Thread Machine
Double Thread Machine
Product Code : 02
Product Description

In our extensive gamut of products, we bring forth for our clients Double Thread Machine. This product is used in various textile industries for weaving clothing materials. Offered machine is designed by our skilled engineers and manufactured using best class components at our in-house production unit as per the set international standards. It comes in 128 to 224 spindles and 80 to140 number of spindles in primary and secondary deck respectively. Also, it is equipped with heavy duty motor that is offered from 3 to 7 HP. Available in various other technical specifications, this Double Thread Machine is offered to our clients at most competitive prices.

Features:

  • Superior performance

  • Reliable operation

  • Precisely engineered

  • Long service life



DOUBLING THREAD MACHINE {MODEL NO. STP-DT.1}
TECHNICAL SPECIFICATION
PRIMERY DECK









1 No. of spindles 128 144 160 176 192 208 224
2 No. of section 8 9 10 11 12 13 14
3 connected power(H.P.) 3 3 3 4 4 5 5
4 machine length feet 37.5 41.66 45.83 50 54.16 58.33 62.5
5 machine width 560 mm





6 spindle pot dia 70 mm





7 take up package 1000 gm





8 feed tube 240 mm plastic tube





9 count range 30 denier to 500 denier





10 spindle r.p.m. 5000 to 14000 rpm




11 tention type ball type





12 max. yarn speed 62 mtrs/min.





SECONDARY DECK :









1 No. of spindles 80 90 100 110 120 130 140
2 No. of section 8 9 10 11 12 13 14
3 connected power(H.P.) 4 4 4 5 5 7 7
4 machine length feet 37.5 41.66 45.83 50 54.16 58.33 62.5
5 machine width 560 mm





6 spindle pot dia 90 to 110 mm





7 take up package 1000 gm to 1200 gm





8 feed tube 165 mm plastic tube





9 count range 30 denier(double) to 500 denier





10 spindle r.p.m. 5000 to 12000





11 tention type ball type





12 max. yarn speed 54 mtrs/min.





13 spindle drive Nylon sandwitch belt
